Vibe shock monitoring system

Monitor vibration during Piling, Excavation and other high impact construction activities

The RDL//Vibe is a completely self powered, remote, GSM based shock monitoring system for sensitive properties and structures.

The RDL//Vibe will capture any shocks/vibrations that exceed the pre-defined levels you have configured via the secure web bureau. An alarm will then be generated via SMS or email to your selected list of recipients enabling immediate, corrective action to be undertaken.

Used to monitor:

  • Site traffic
  • Excavation effects on structures
  • Historical buildings

The RDL vibe system is an 'always on' system that is constantly measuring for vibration events, this data is not stored unless a threshold is breached (i.e. A large vibration event), at which point the device will become active and record data at a rate of up to 500hz. If the preset threshold is breached there would also be an alarm notification sent out via sms or email - this would be received within 2-3 minutes of the vibration event.

The device also wakes up periodically to measure general vibration levels, which would give you some data on the kind of day-to-day vibration that is occurring on site. This data is sent via mobile phone networks to our online gateway. The system uses a pair of triaxial Geophones, which send vibration data in x,y & z back to the base station via 5m long fly leads. The sensors provide outputs in pure velocity as well as Peak Particle Velocity

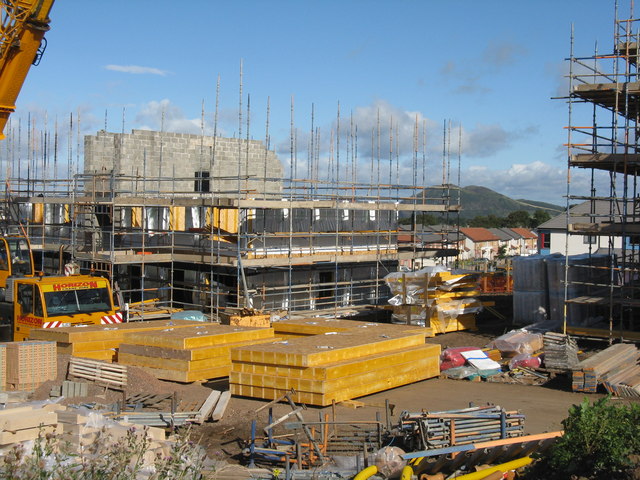

Suitable for a construction site environment

Suitable for a construction site environment

Able to notify almost instantly of bridge strikes

Able to notify almost instantly of bridge strikes
